MIDEA FILTERS - WATER COOLERS YDROCHOOS

WATER COOLERS MIDEA FILTERS

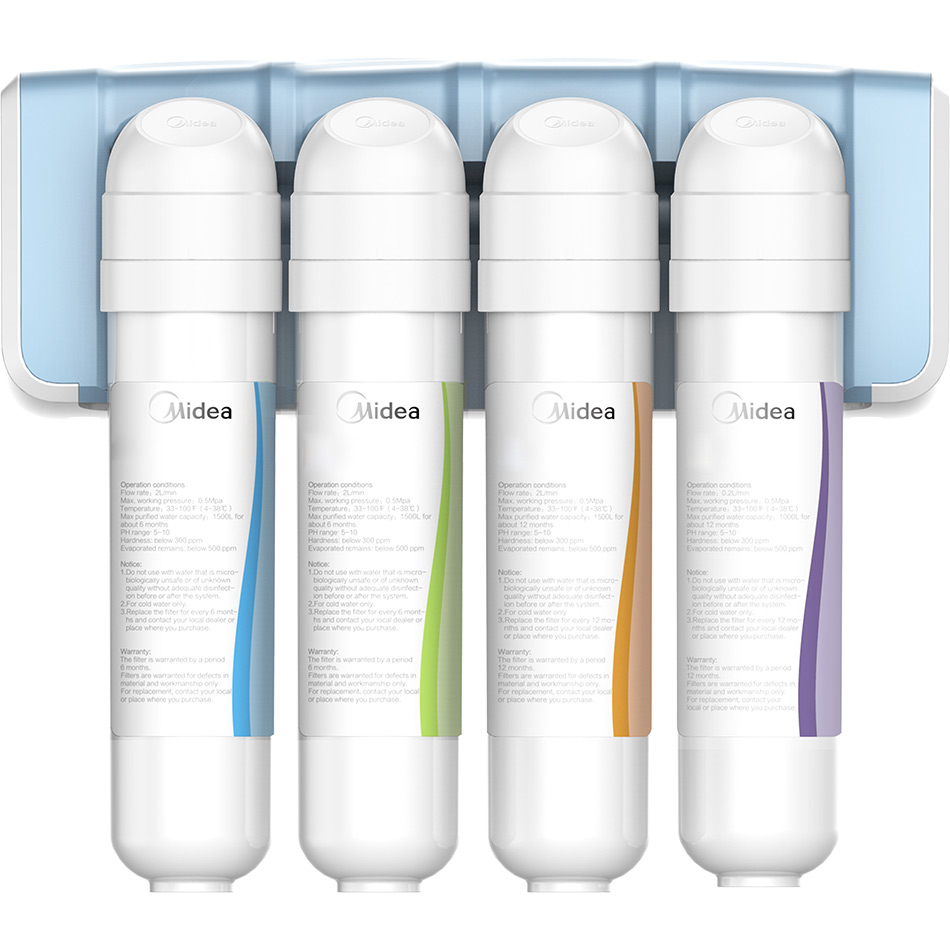

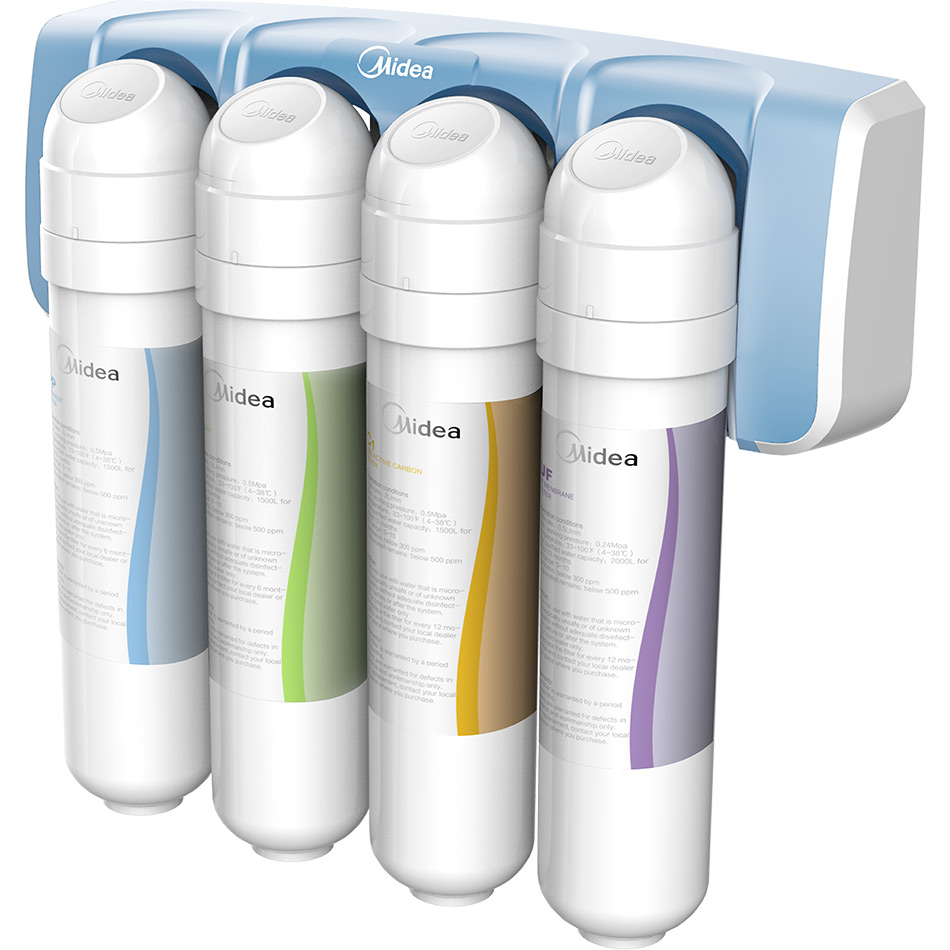

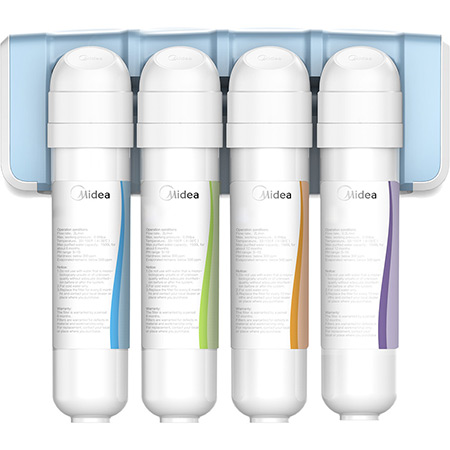

UNDER SINK PURIFIER FILTER SYSTEM MU1649

Height: 44cm
Width: 36cm
Length: 25cm
Water Pressure: 1.5-4bar
Feed Water Temperature: 5-38°C

MANUAL »

MIDEA FILTERS SPARE FILTERS CARTRIDGES

PRE-CARBON FILTER C1

FLOW RATE: 3L / MIN
MAX WORKING PRESSURE: 0.4 MPA
TEMPERATURE: 4 ~ 38°C
MAX FILTER CAPACITY: 7200L (APPROX. 12 MONTHS)
HARDNESS: BELOW 350 PPM

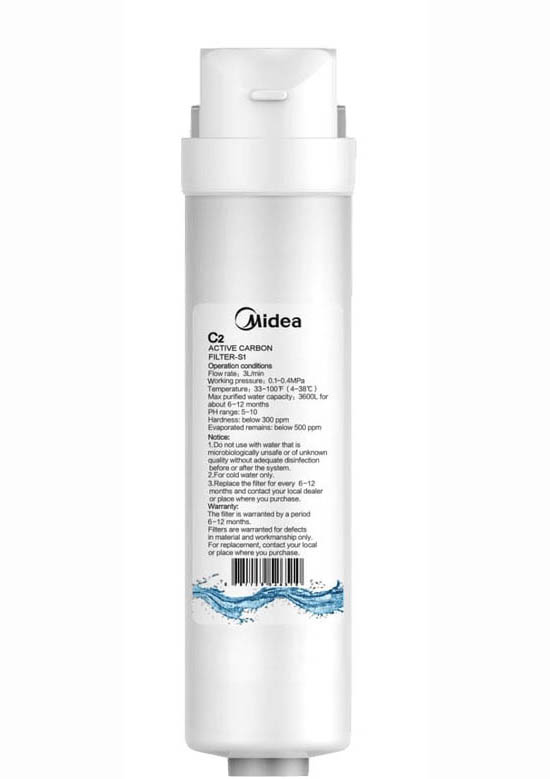

POST-CARBON FILTER C2

FLOW RATE: 3L / MIN
MAX WORKING PRESSURE: 0.1 - 0.4 MPA
TEMPERATURE: 4 ~ 38°C
MAX FILTER CAPACITY: 3600L (APPROX. 6-12 MONTHS)
HARDNESS: BELOW 350 PPM

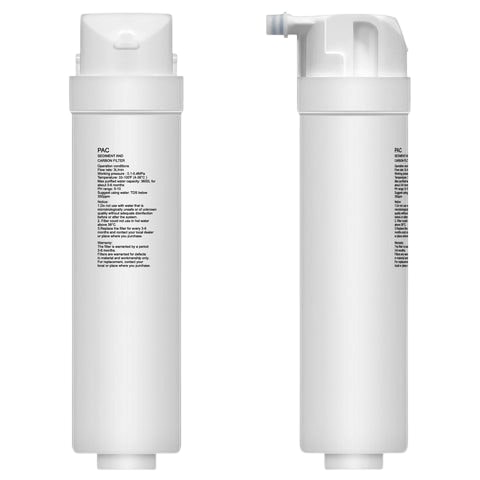

SEDIMENT & CARBON FILTER PAC

FLOW RATE: 3L / MIN
MAX WORKING PRESSURE: 0.1 - 0.4 MPA
TEMPERATURE: 4 ~ 38°C
MAX FILTER CAPACITY: 3600L (APPROX. 6 MONTHS)
HARDNESS: BELOW 350 PPM

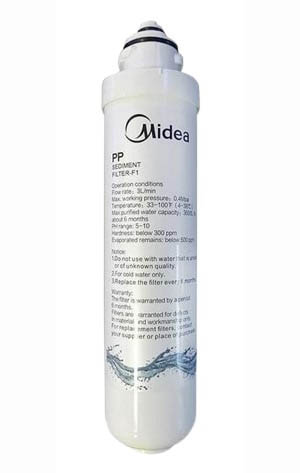

SEDIMENT FILTER PP

FLOW RATE: 3L / MIN
MAX WORKING PRESSURE: 0.4 MPA
TEMPERATURE: 4 ~ 38°C
MAX FILTER CAPACITY: 3600L (APPROX. 6 MONTHS)
HARDNESS: BELOW 300 PPM

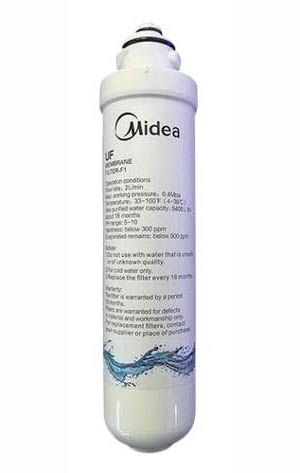

ULTRA-FILTRATION MEMBRANE FILTER UF

FLOW RATE: 2L / MIN
MAX WORKING PRESSURE: 0.4 MPA
MAX FILTER CAPACITY: 5400L (FOR ABOUT 18 MONTHS)
HARDNESS: BELOW 300 PPM
